Specifications

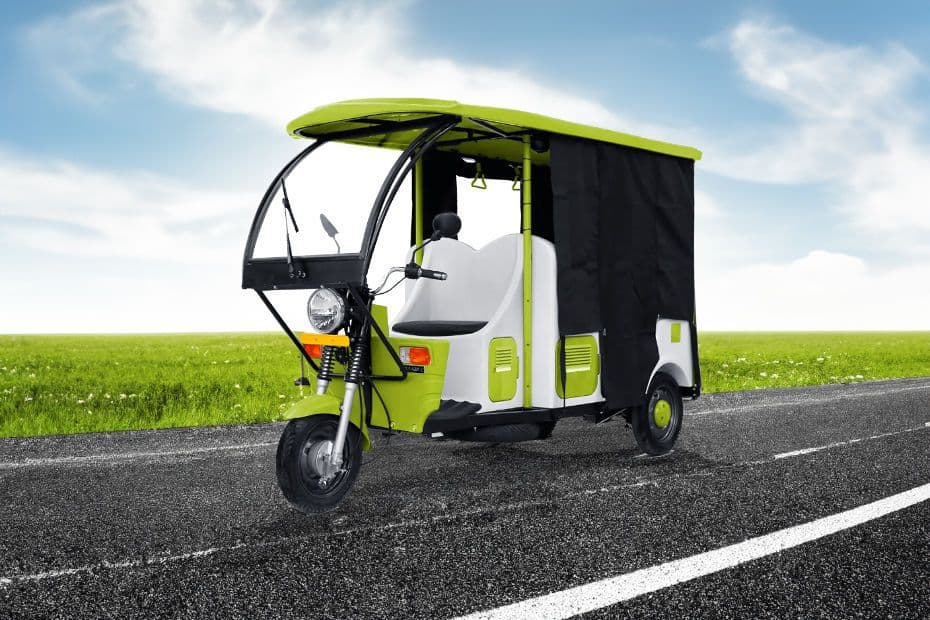

OK Play eRaaja

Explore OK Play eRaaja specifications & features across all variants — engine, dimensions, safety and more.

Price on Request

Ex-showroom Price

eRaaja

Specifications & Features.

Key Specifications

Fuel TypeElectric
Engine-
TransmissionAutomatic
Power1 hp

Performance

Max Power1 hp
Fuel TypeElectric
Max Speed (km/h)25
Turning Radius (mm)3250
Range100
Battery Capacity150 Ah
Product TypeL3M (Low Speed Passenger Carrier)
Carrier TypePassenger Carrier

Charging

Charging Time6-8 hrs

Dimension

Overall Length (mm)2800
Overall Width (mm)1000
Overall Height (mm)1800
Ground Clearance (mm)180
Wheelbase (mm)2765
Axle Configuration3x3

Transmission & Loading Capacity

TransmissionAutomatic
Kerb Weight (Kgs)320
Power SteeringNo
GVW / GCW (Kgs)700 kg
Gear Box1 Forward + 1 Reverse

Features

SteeringHandle bar type
A/CNo
Cruise ControlNo
Navigation SystemNo
TelematicsNo
Tiltable SteeringNo
Arm-restNo
Seat TypeStandard

Brakes & Suspension

BrakesDrum Brakes
Front SuspensionTelescopic Suspension
Rear SuspensionHelical Coil Spring Suspension
Parking BrakesYes
ABSNo

Body Option & Cabin Type

Chassis TypeChassis with Cabin
Body OptionFully Built
Cabin TypeDay Cabin
Tiltable CabinNo

Tyres

Number of Tyre3
Rear Tyre3.75-12, 90/90-12
Front Tyre3.75-12, 90/90-12

Others

ChassisYes
Battery(Volts)48V
Fog LightsNo
Alternator (Amps)15 A

*Prices are ex-showroom in New Delhi. Specifications may vary for different variants.
