Specifications

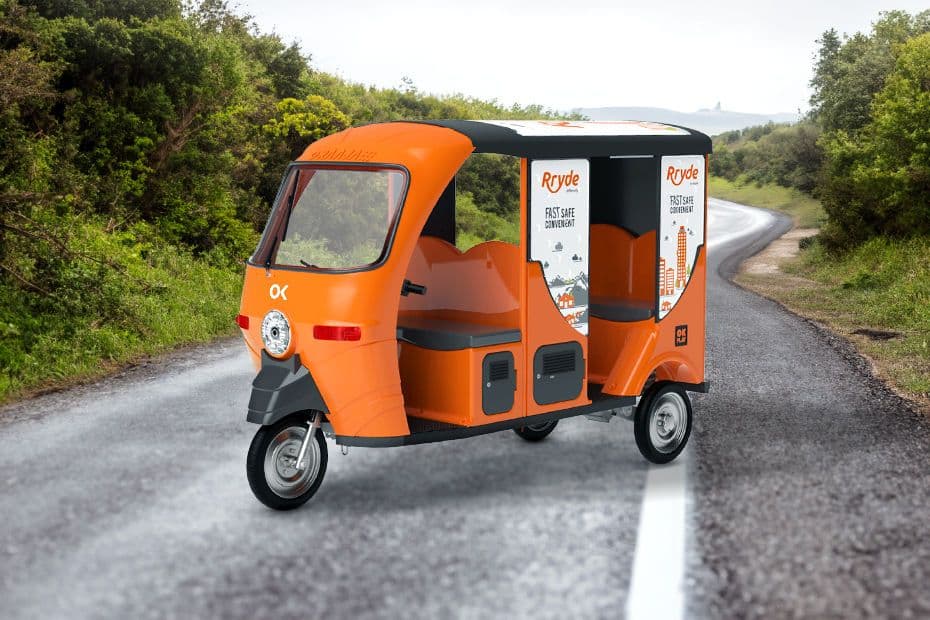

OK Play eRaaja Dx

Explore OK Play eRaaja Dx specifications & features across all variants — engine, dimensions, safety and more.

Price on Request

Ex-showroom Price

eRaaja Dx

Specifications & Features.

Key Specifications

Fuel TypeElectric
Engine-
TransmissionAutomatic
Power1 hp

Performance

Max Power1 hp
Fuel TypeElectric
Max Speed (km/h)25
Battery Capacity100 Ah
Product TypeL3M (Low Speed Passenger Carrier)
Carrier TypePassenger Carrier
Emission NormsZero Tailpipe
Type of MotorPMSM Motor

Charging

Charging Time6-8 hrs

Dimension

Overall Length (mm)2765
Overall Width (mm)985
Overall Height (mm)1790
Ground Clearance (mm)180
Wheelbase (mm)2765
Axle Configuration3x3

Transmission & Loading Capacity

TransmissionAutomatic
Kerb Weight (Kgs)310
Power SteeringNo
GVW / GCW (Kgs)749 kg
Gear Box1 Forward + 1 Reverse

Features

SteeringHandle bar type
A/CNo
Cruise ControlNo
Navigation SystemNo
TelematicsNo
Tiltable SteeringNo
Arm-restNo
Seat TypeStandard

Brakes & Suspension

BrakesHydraulic Drum
Front SuspensionAnti-Dip Front Suspension With Shocker And Spring
Rear SuspensionHelical Coil Spring Suspension
Parking BrakesYes
ABSNo

Body Option & Cabin Type

Chassis TypeChassis with Cabin
Body OptionFully Built
Cabin TypeDay Cabin
Tiltable CabinNo

Tyres

Number of Tyre3
Rear Tyre3x12
Front Tyre3x12

Others

ChassisYes
Battery(Volts)48V
Fog LightsNo

*Prices are ex-showroom in New Delhi. Specifications may vary for different variants.
