Specifications

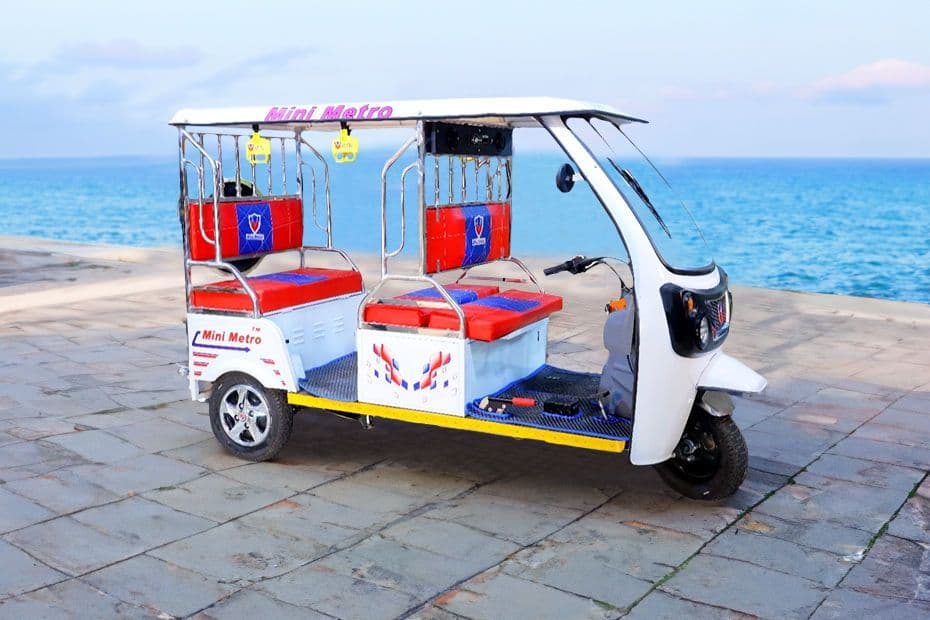

Mini Metro Pro

Explore Mini Metro Pro specifications & features across all variants — engine, dimensions, safety and more.

Price on Request

Ex-showroom Price

Pro

Specifications & Features.

Key Specifications

Fuel TypeElectric
Engine-
TransmissionAutomatic
Power1 hp

Performance

Max Power1 hp
Fuel TypeElectric
Max Speed (km/h)25
Turning Radius (mm)2200
Range100
Battery Capacity120Ah
Product TypeL3M (Low Speed Passenger Carrier)
Carrier TypePassenger Carrier

Charging

Charging Time8 Hrs

Dimension

Overall Length (mm)2800
Overall Width (mm)1000
Overall Height (mm)1800
Ground Clearance (mm)180
Wheelbase (mm)2120
Axle Configuration3x3
Loading Width {mm}995
Loading Height {mm}1790

Transmission & Loading Capacity

TransmissionAutomatic
Power SteeringNo
GVW / GCW (Kgs)600 kg
Gear Box1 Forward + 1 Reverse
Payload (Kgs)500 Kgs

Features

SteeringHandle bar type
A/CNo
Cruise ControlNo
Navigation SystemNo
TelematicsNo
Tiltable SteeringNo
Arm-restNo
Seat TypeStandard

Brakes & Suspension

BrakesDrum Brakes
Front Suspension43mm Telescopic Suspension
Rear SuspensionLeaf Spring
Parking BrakesYes
ABSNo

Body Option & Cabin Type

Chassis TypeSquare Tublar
Body OptionBox body
Cabin TypeDay Cabin
Tiltable CabinYes

Tyres

Number of Tyre3
Rear Tyre30x14 Inch
Front Tyre30x14 Inch

Others

ChassisYes
Battery(Volts)48 V
Fog LightsNo
Canopy Length2790

*Prices are ex-showroom in New Delhi. Specifications may vary for different variants.
