Specifications

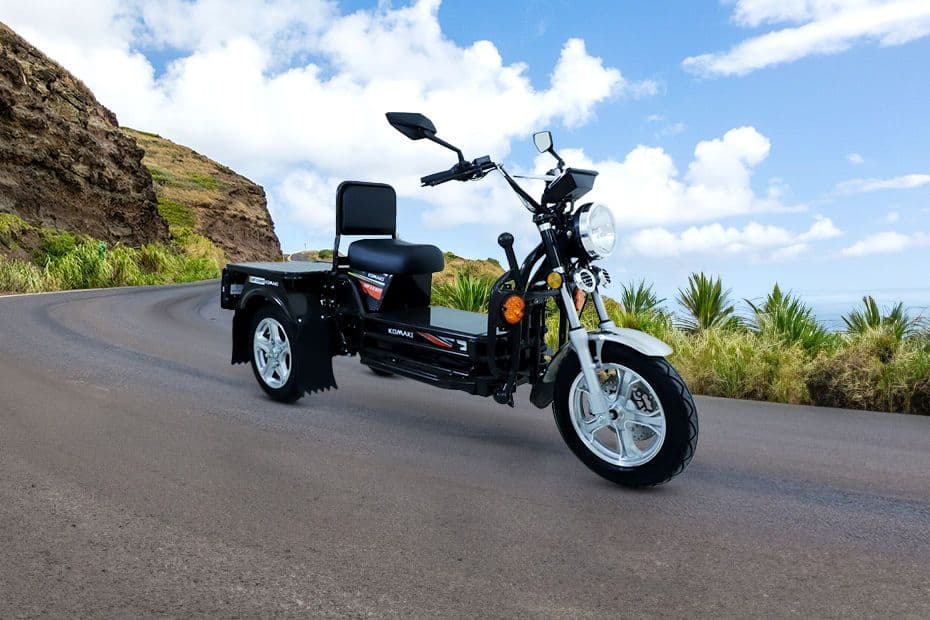

Komaki CAT 3.0

Explore Komaki CAT 3.0 specifications & features across all variants — engine, dimensions, safety and more.

Price on Request

Ex-showroom Price

CAT 3.0

Specifications & Features.

Key Specifications

Fuel TypeElectric
Engine-
TransmissionAutomatic
PowerNo

Performance

Fuel TypeElectric
Max Speed (km/h)25
Range140-200
Battery Capacity60 Ah
Product TypeL3N (Low Speed Goods Carrier)
Carrier TypeGoods Carrier
Emission NormsZero Tailpipe
Type of Motormid-drive motor

Charging

Charging Time3-4 Hour

Dimension

Overall Length (mm)1900
Overall Width (mm)1500
Overall Height (mm)1180
Ground Clearance (mm)185
Wheelbase (mm)1390
Axle Configuration3x3

Transmission & Loading Capacity

TransmissionAutomatic
Kerb Weight (Kgs)125
Power SteeringNo
GVW / GCW (Kgs)500 kg
Gear Box3 Gear mode with regen eco sport turbo
Payload (Kgs)500 Kgs

Features

SteeringHandle bar type
A/CNo
Cruise ControlYes
Navigation SystemNo
TelematicsNo
Tiltable SteeringNo
Arm-restNo
Seat TypeStandard

Brakes & Suspension

BrakesDisc Brake
Front SuspensionTelescopic Shocker
Rear SuspensionTelescopic Shocker
Parking BrakesYes
ABSNo

Body Option & Cabin Type

Body OptionFlat Bad
Cabin TypeNo Cabin
Tiltable CabinNo

Tyres

Number of Tyre3
Rear Tyre90/90-12
Front Tyre90/90-12

Others

ChassisYes
Battery(Volts)72 V
Fog LightsNo

*Prices are ex-showroom in New Delhi. Specifications may vary for different variants.
