Specifications

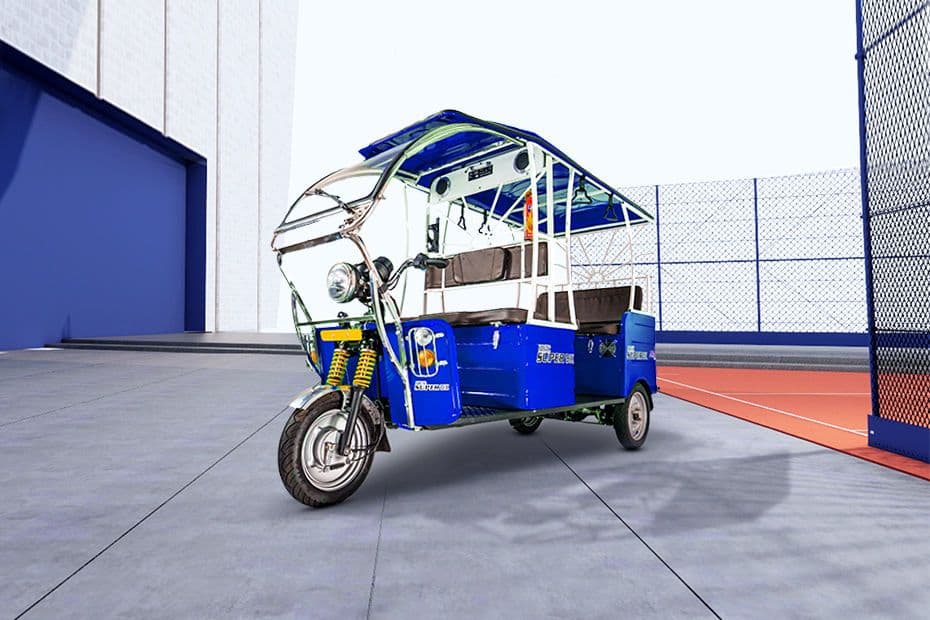

Kinetic Super DX

Explore Kinetic Super DX specifications & features across all variants — engine, dimensions, safety and more.

Price on Request

Ex-showroom Price

Super DX

Specifications & Features.

Key Specifications

Fuel TypeElectric
Engine-
TransmissionAutomatic
Power1 hp

Performance

Max Power1 hp
Fuel TypeElectric
Gradeability (%)7 %
Max Speed (km/h)25
Turning Radius (mm)2800
Range110
Battery Capacity130 Ah
Product TypeL3M (Low Speed Passenger Carrier)

Charging

Charging Time8 Hrs

Dimension

Overall Length (mm)2781
Overall Width (mm)995
Overall Height (mm)1799
Ground Clearance (mm)220
Wheelbase (mm)2118
Axle Configuration3x3

Transmission & Loading Capacity

TransmissionAutomatic
Kerb Weight (Kgs)399
Power SteeringNo
GVW / GCW (Kgs)779 kg
Gear Box1 Forward + 1 Reverse

Features

SteeringHandle bar type
A/CNo
Cruise ControlNo
Navigation SystemNo
TelematicsNo
Tiltable SteeringNo
Arm-restNo
Seat TypeStandard

Brakes & Suspension

BrakesMechanical drum brake
Front SuspensionTelescopic With Hydraulic Dampers
Rear SuspensionLeaf spring & Hydraulic Shock absorber
Parking BrakesYes
ABSNo

Body Option & Cabin Type

Chassis TypeChassis with Cabin
Body OptionFuliy Bulit
Cabin TypeDay Cabin
Tiltable CabinNo

Tyres

Number of Tyre3
Rear Tyre3.75 x 12
Front Tyre3.75 x 12

Others

ChassisYes
Battery(Volts)48 V
Fog LightsNo

*Prices are ex-showroom in New Delhi. Specifications may vary for different variants.
