Specifications

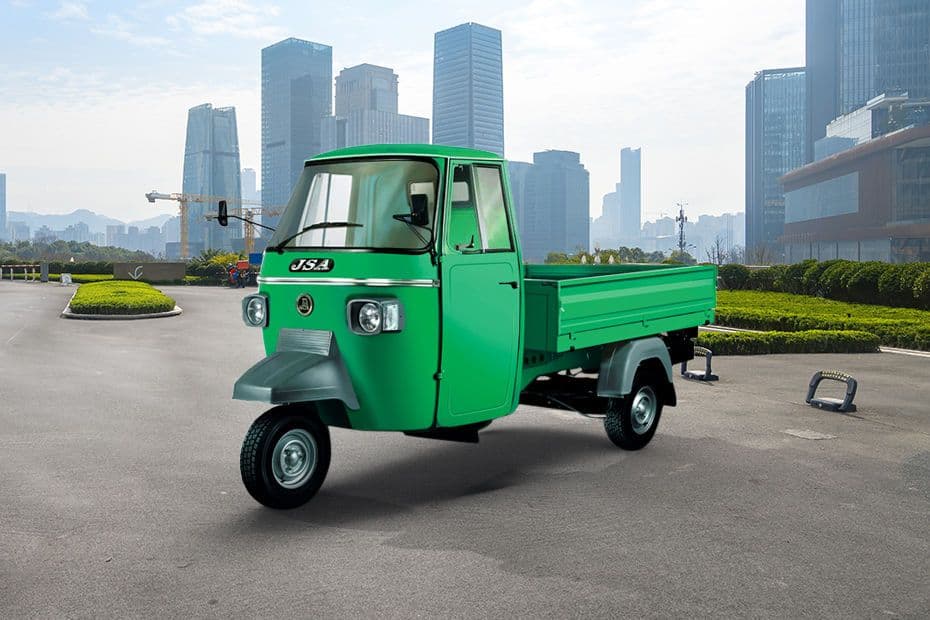

JSA NV CNG Loader

Explore JSA NV CNG Loader specifications & features across all variants — engine, dimensions, safety and more.

Price on Request

Ex-showroom Price

NV CNG Loader

Specifications & Features.

Key Specifications

Fuel TypeCNG
Engine395 cc
TransmissionManual
Power7 kW

Performance

Max Power7 kW
Fuel TypeCNG
Max Speed (km/h)50
Turning Radius (mm)2750
Battery Capacity50 Ah
Product TypeL3N (Low Speed Goods Carrier)
Carrier TypeGoods Carrier
Engine Displacement (cc)395 cc

Dimension

Overall Length (mm)3100
Overall Width (mm)1480
Overall Height (mm)1700
Ground Clearance (mm)155
Wheelbase (mm)2100
Axle Configuration3x3

Transmission & Loading Capacity

TransmissionManual
Kerb Weight (Kgs)500
Power SteeringNo
GVW / GCW (Kgs)995 kg
Gear BoxConstant Mesh
ClutchWet Multiplate
Payload (Kgs)427 Kgs

Features

SteeringHandle bar type
A/CNo
Cruise ControlNo
Navigation SystemNo
TelematicsNo
Tiltable SteeringNo
Arm-restNo
Seat TypeStandard

Brakes & Suspension

BrakesDrum Brakes
Front SuspensionCoil Spring Suspension
Rear SuspensionRubber Damper Suspension
Parking BrakesYes
ABSNo

Body Option & Cabin Type

Chassis TypeChassis with Cabin
Body OptionDeck Body
Cabin TypeDay Cabin
Tiltable CabinNo

Tyres

Number of Tyre3
Rear Tyre4.50-10, 8PR
Front Tyre4.50-10, 8PR

Others

ChassisYes
Battery(Volts)12 V
Fog LightsNo

*Prices are ex-showroom in New Delhi. Specifications may vary for different variants.
