Specifications

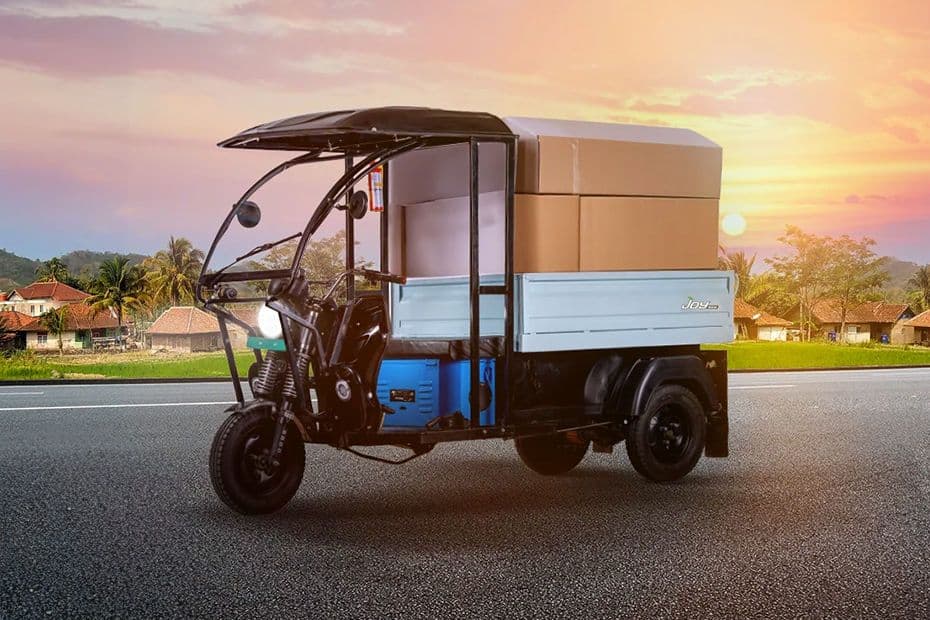

Joy E-Rik Eco

Explore Joy E-Rik Eco specifications & features across all variants — engine, dimensions, safety and more.

Price on Request

Ex-showroom Price

E-Rik Eco

Specifications & Features.

Key Specifications

Fuel TypeElectric
Engine-
TransmissionSingle Speed
Power1.59 kW

Performance

Max Power1.59 kW
Fuel TypeElectric
Gradeability (%)7 %
Max Speed (km/h)25
Turning Radius (mm)3100
Range100 - 120 Kms
Battery Capacity7.2 kW
Product TypeL3N (Low Speed Goods Carrier)

Charging

Charging Time8-8.5 Hrs

Dimension

Overall Length (mm)2760
Overall Width (mm)990
Overall Height (mm)1800
Ground Clearance (mm)160
Wheelbase (mm)2100

Transmission & Loading Capacity

TransmissionSingle Speed
Kerb Weight (Kgs)436
GVW / GCW (Kgs)746 kg
Gear Box1 Forward + 1 Reverse
Payload (Kgs)310 Kgs

Features

SteeringNo
A/CNo
Cruise ControlNo
Navigation SystemNo
TelematicsNo
Arm-restNo
Seat TypeStandard
Driver Information DisplayYes

Brakes & Suspension

BrakesMechanical drum brake
Front SuspensionHelical Spring + Damper
Rear SuspensionLeaf Spring
Parking BrakesYes

Body Option & Cabin Type

Chassis TypeChassis with Cabin
Body OptionDeck Body
Cabin TypeDay Cabin
Tiltable CabinNo

Tyres

Number of Tyre3
Rear Tyre3.75 x 12
Front Tyre3.75 x 12

Others

ChassisYes
Battery(Volts)48 V

*Prices are ex-showroom in New Delhi. Specifications may vary for different variants.
