Specifications

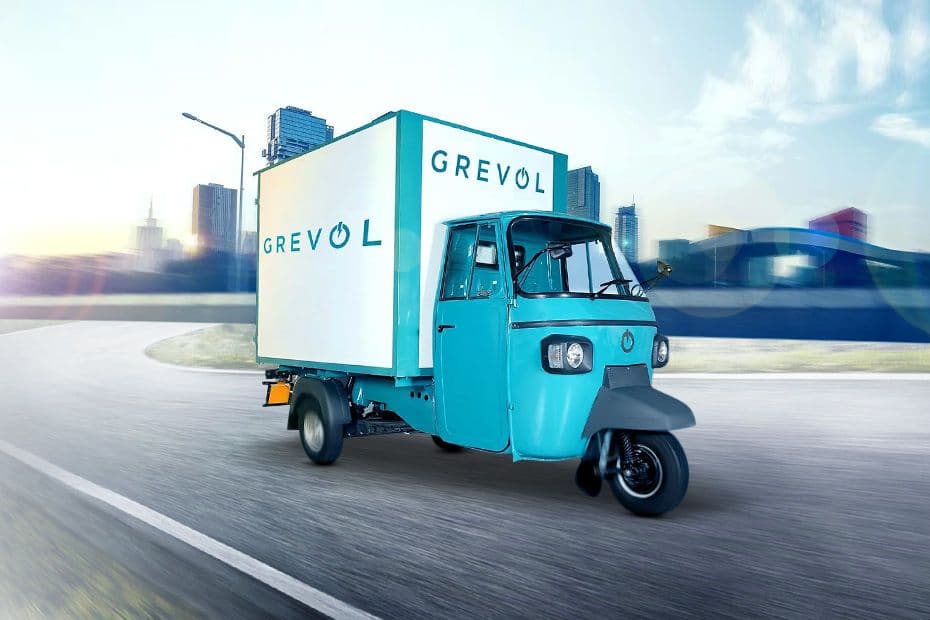

Grevol Cargo 3 Wheeler

Explore Grevol Cargo 3 Wheeler specifications & features across all variants — engine, dimensions, safety and more.

Price on Request

Ex-showroom Price

Cargo 3 Wheeler

Specifications & Features.

Key Specifications

Fuel TypeElectric
Engine-
TransmissionTwo step diffrential
Power9 Kw

Performance

Max Power9 Kw
Fuel TypeElectric
Gradeability (%)22 %
Max Speed (km/h)50
Turning Radius (mm)3050
Range125-140
Battery Capacity200 OR 228 AH
Product TypeL5N (High Speed Goods Carrier)

Charging

Charging Time4 hours

Dimension

Overall Length (mm)3450
Overall Width (mm)1480
Overall Height (mm)2260
Ground Clearance (mm)250
Wheelbase (mm)2440
Axle Configuration3x3
Loading Width {mm}1480
Loading Height {mm}1550

Transmission & Loading Capacity

TransmissionTwo step diffrential
Kerb Weight (Kgs)525
Power SteeringNo
GVW / GCW (Kgs)1275 kg
Payload (Kgs)750 Kgs

Features

SteeringHandle bar type
A/CNo
Cruise ControlNo
Navigation SystemYes
TelematicsYes
Tiltable SteeringNo
Arm-restNo
Seat TypeStandard

Brakes & Suspension

BrakesDrum Brake (Hydraulically Actuated)
Front SuspensionHelical spring with dampner
Rear SuspensionRubber spring with dampner
Parking BrakesYes
Rear Axle345 mm X2

Body Option & Cabin Type

Chassis TypeChassis with Cabin
Body OptionBox body
Cabin TypeDay Cabin
Tiltable CabinNo

Tyres

Number of Tyre3
Rear Tyre4.5-10
Front Tyre4.5-10

Others

ChassisYes
Battery(Volts)51.2V
Fog LightsNo

*Prices are ex-showroom in New Delhi. Specifications may vary for different variants.
