Specifications

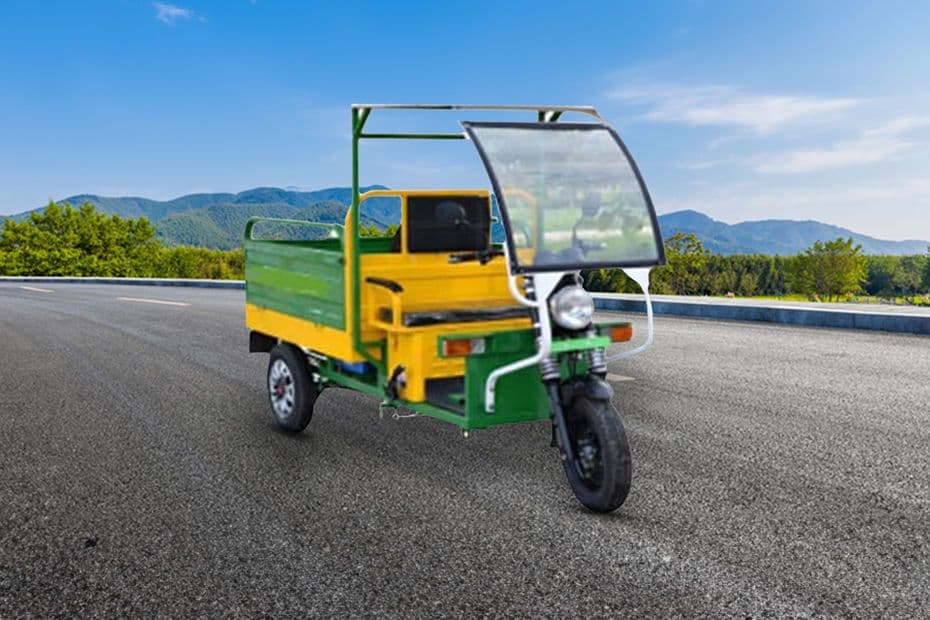

Evex Auto Ranger LDR

Explore Evex Auto Ranger LDR specifications & features across all variants — engine, dimensions, safety and more.

Price on Request

Ex-showroom Price

Ranger LDR

Specifications & Features.

Key Specifications

Fuel TypeElectric
Engine-
TransmissionAutomatic
Power2 hp

Performance

Max Power2 hp
Fuel TypeElectric
Max Speed (km/h)23
Range80-120
Battery Capacity130 Ah
Product TypeL3N (Low Speed Goods Carrier)
Carrier TypeGoods Carrier
Emission NormsZero Tailpipe

Charging

Charging Time8-10 Hour

Dimension

Overall Length (mm)1400
Overall Width (mm)510
Overall Height (mm)970
Ground Clearance (mm)325
Wheelbase (mm)1800
Axle Configuration3x3

Transmission & Loading Capacity

TransmissionAutomatic
Kerb Weight (Kgs)280
Power SteeringNo
GVW / GCW (Kgs)320 kg
Gear Box1 Forward + 1 Reverse
Payload (Kgs)500 Kgs

Features

SteeringHandle bar type
A/CNo
Cruise ControlNo
Navigation SystemNo
TelematicsNo
Tiltable SteeringNo
Arm-restNo
Seat TypeStandard

Brakes & Suspension

BrakesMechanical drum brake
Front Suspension43mm Hydraulic with Spring
Rear SuspensionLeaf Spring Suspension
Parking BrakesYes
ABSNo

Body Option & Cabin Type

Chassis TypeChassis with Cabin
Body OptionDeck Body
Cabin TypeDay Cabin
Tiltable CabinNo

Tyres

Number of Tyre3
Rear Tyre90x90x12
Front Tyre90x90x12

Others

ChassisYes
Battery(Volts)48 V
Fog LightsYes

*Prices are ex-showroom in New Delhi. Specifications may vary for different variants.
