Specifications

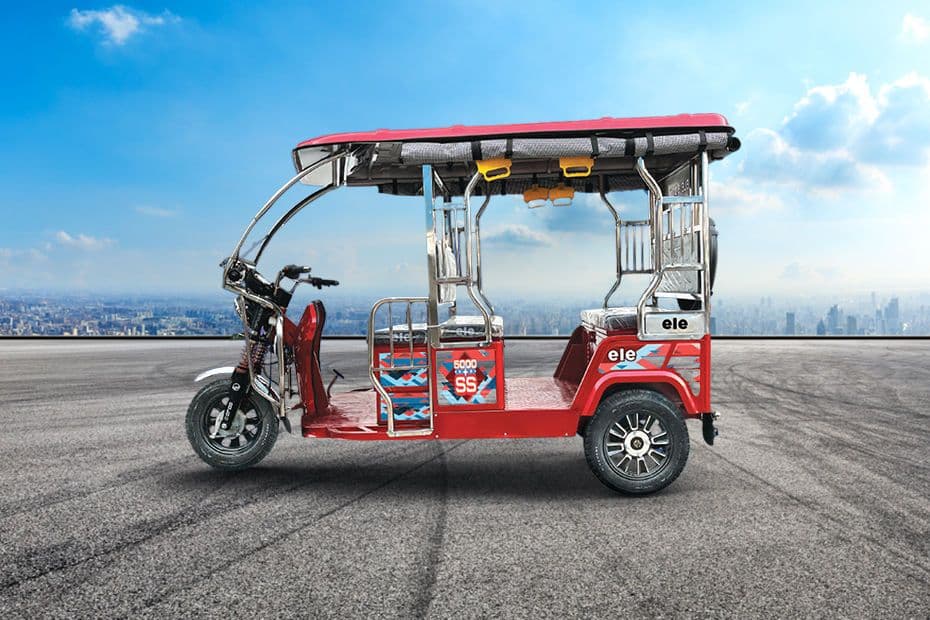

Ele 5000 Ss

Explore Ele 5000 Ss specifications & features across all variants — engine, dimensions, safety and more.

Price on Request

Ex-showroom Price

5000 Ss

Specifications & Features.

Key Specifications

Fuel TypeElectric
Engine-
TransmissionAutomatic
Power1 hp

Performance

Max Power1 hp
Fuel TypeElectric
Max Speed (km/h)25
Range130-150
Battery Capacity135 Ah
Product TypeL3M (Low Speed Passenger Carrier)
Carrier TypePassenger Carrier
Emission NormsZero Tailpipe

Charging

Charging Time8-10 hrs

Dimension

Overall Width (mm)1000
Ground Clearance (mm)180
Wheelbase (mm)1900
Axle Configuration3x3

Transmission & Loading Capacity

TransmissionAutomatic
Kerb Weight (Kgs)400
Power SteeringNo
GVW / GCW (Kgs)600 kg
Gear Box1 Forward + 1 Reverse

Features

SteeringHandle bar type
A/CNo
Cruise ControlNo
Navigation SystemNo
TelematicsNo
Tiltable SteeringNo
Arm-restNo
Seat TypeStandard

Brakes & Suspension

BrakesDrum Brakes
Front SuspensionLeaf springs
Rear SuspensionLeaf Springs
Parking BrakesYes
ABSNo

Body Option & Cabin Type

Chassis TypeChassis with Cabin
Body OptionFully Built
Cabin TypeDay Cabin
Tiltable CabinNo

Tyres

Number of Tyre3
Rear Tyre3.75x12
Front Tyre3.75x12

Others

ChassisYes
Battery(Volts)12 V
Fog LightsNo

*Prices are ex-showroom in New Delhi. Specifications may vary for different variants.
