Specifications

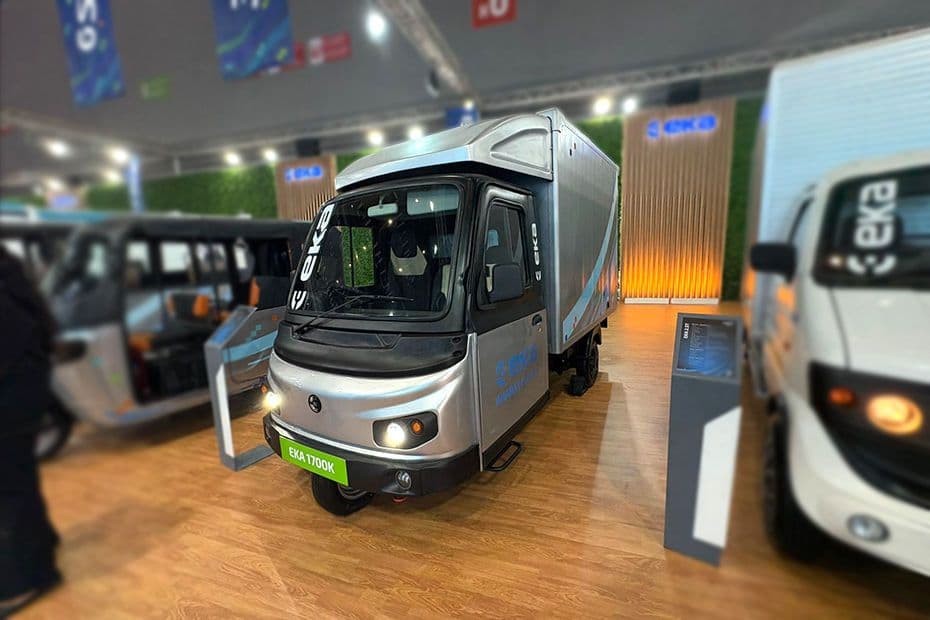

EKA 3 Wheeler Cargo

Explore EKA 3 Wheeler Cargo specifications & features across all variants — engine, dimensions, safety and more.

Price on Request

Ex-showroom Price

3 Wheeler Cargo

Specifications & Features.

Key Specifications

Fuel TypeElectric
Engine-
TransmissionAutomatic
Power15 kW

Performance

Max Power15 kW
Fuel TypeElectric
Gradeability (%)19 %
Max Speed (km/h)50
Turning Radius (mm)5000
Range200
Battery Capacity20 kWh
Product TypeL5N (High Speed Goods Carrier)

Charging

Charging Time3 - 6.5 Hours
AC & DC (if available)Single Phase AC Charging | DC Fast Charging

Dimension

Overall Length (mm)3950
Overall Width (mm)1580
Overall Height (mm)2400
Ground Clearance (mm)172
Wheelbase (mm)2550
Loading Width {mm}1550
Loading Length {mm}2300
Loading Height {mm}1750

Transmission & Loading Capacity

TransmissionAutomatic
GVW / GCW (Kgs)1700 kg
Gear Box1 Forward + 1 Reverse
Payload (Kgs)750 Kgs

Features

SteeringRock & Pinion Steering Wheel
A/CNo
Cruise ControlNo
Navigation SystemNo
TelematicsNo
Arm-restNo
Seat TypeStandard
Driver Information DisplayYes

Brakes & Suspension

BrakesDisc & Drum Brakes
Front SuspensionDual Helical Spring with Damper
Rear SuspensionShocker Absorber with Torsion Bar
Parking BrakesYes

Body Option & Cabin Type

Chassis TypeLadder Chassis
Body OptionBox body
Cabin TypeDay Cabin
Tiltable CabinNo

Tyres

Number of Tyre3
Rear Tyre130/80 R12
Front Tyre130/80 R12

Others

ChassisLadder
Battery(Volts)51.2 V
Fog LightsYes

*Prices are ex-showroom in New Delhi. Specifications may vary for different variants.
