Specifications

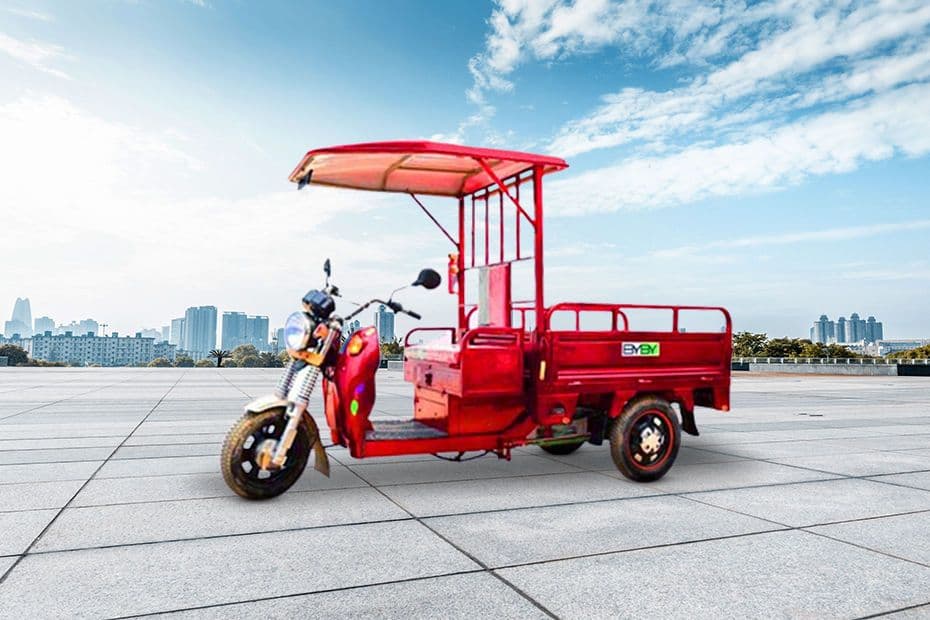

BYBY E-Cart Loader

Explore BYBY E-Cart Loader specifications & features across all variants — engine, dimensions, safety and more.

Price on Request

Ex-showroom Price

E-Cart Loader

Specifications & Features.

Key Specifications

Fuel TypeElectric
Engine-
TransmissionAutomatic
Power1 hp

Performance

Max Power1 hp
Fuel TypeElectric
Max Speed (km/h)30
Turning Radius (mm)2900
Range80-100
Battery Capacity90 Ah
Product TypeL3N (Low Speed Goods Carrier)
Carrier TypeGoods Carrier

Charging

Charging Time6-8 hrs

Dimension

Overall Length (mm)2720
Overall Width (mm)980
Overall Height (mm)1780
Ground Clearance (mm)200
Wheelbase (mm)1800
Axle Configuration3x3
Loading Length {mm}1500
Loading Height {mm}1000

Transmission & Loading Capacity

TransmissionAutomatic
Kerb Weight (Kgs)335
Power SteeringNo
GVW / GCW (Kgs)214 kg
Gear Box1 Forward + 1 Reverse
Payload (Kgs)600 Kgs

Features

SteeringHandle bar type
A/CNo
Cruise ControlNo
Navigation SystemNo
TelematicsNo
Tiltable SteeringNo
Arm-restNo
Seat TypeStandard

Brakes & Suspension

BrakesDrum Brakes
Front SuspensionLeaf springs Suspension
Rear SuspensionLeaf Spring Suspension
Parking BrakesYes
ABSNo

Body Option & Cabin Type

Chassis TypeChassis with Cabin
Body OptionDeck Body
Cabin TypeDay Cabin
Tiltable CabinNo

Tyres

Number of Tyre3
Rear Tyre4.00x12
Front Tyre2.75x14

Others

ChassisYes
Battery(Volts)60 V
Fog LightsNo
Loading Platform Area(Sq.ft)139.35

*Prices are ex-showroom in New Delhi. Specifications may vary for different variants.
