Specifications

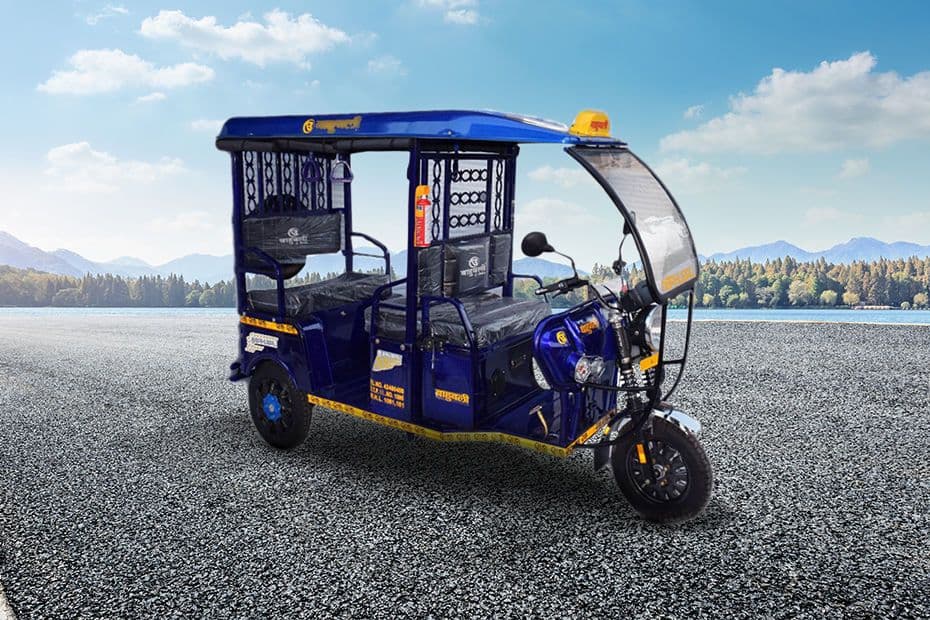

Bahubali E-Rickshaw Plus

Explore Bahubali E-Rickshaw Plus specifications & features across all variants — engine, dimensions, safety and more.

Price on Request

Ex-showroom Price

E-Rickshaw Plus

Specifications & Features.

Key Specifications

Fuel TypeElectric
Engine-
TransmissionAutomatic
Power1 hp

Performance

Max Power1 hp
Fuel TypeElectric
Max Speed (km/h)25
Turning Radius (mm)2900
Range70-100
Battery Capacity120 Ah
Product TypeL3M (Low Speed Passenger Carrier)
Carrier TypePassenger Carrier

Charging

Charging Time7-10 Hours

Dimension

Overall Length (mm)2740
Overall Width (mm)990
Overall Height (mm)1740
Ground Clearance (mm)150
Wheelbase (mm)2050
Axle Configuration3x3

Transmission & Loading Capacity

TransmissionAutomatic
Kerb Weight (Kgs)203
Power SteeringNo
GVW / GCW (Kgs)400 kg
Gear Box1 Forward + 1 Reverse
Clutch43 mm dia Hydrolic

Features

SteeringHandle bar type
A/CNo
Cruise ControlNo
Navigation SystemNo
TelematicsNo
Tiltable SteeringNo
Arm-restNo
Seat TypeStandard

Brakes & Suspension

BrakesDrum Brakes
Front SuspensionHydraulic / Telescopic Shoker
Rear SuspensionLeaf spring / Telescopic Shocker
Parking BrakesYes
ABSNo

Body Option & Cabin Type

Chassis TypeStrong Chasis
Body OptionFully Built
Cabin TypeDay Cabin
Tiltable CabinNo

Tyres

Number of Tyre3
Rear Tyre3x75-12
Front Tyre3x75-12

Others

ChassisYes
Battery(Volts)48 V
Fog LightsNo
Loading Platform Area(Sq.ft)8
Alternator (Amps)15

*Prices are ex-showroom in New Delhi. Specifications may vary for different variants.
