Specifications

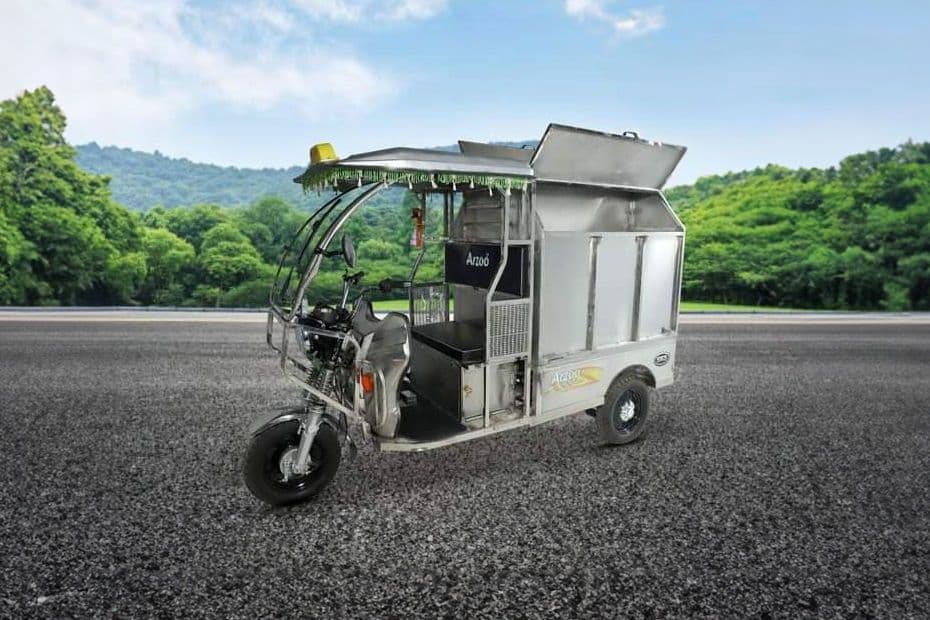

Arzoo Garbage Van

Explore Arzoo Garbage Van specifications & features across all variants — engine, dimensions, safety and more.

Price on Request

Ex-showroom Price

Garbage Van

Specifications & Features.

Key Specifications

Fuel TypeElectric
Engine-
TransmissionAutomatic
Power2 hp

Performance

Max Power2 hp
Fuel TypeElectric
Gradeability (%)20 %
Max Speed (km/h)25
Range30
Battery Capacity110 Ah
Product TypeL3N (Low Speed Goods Carrier)
Carrier TypeGoods Carrier

Charging

Charging Time5 Hrs

Dimension

Overall Length (mm)1250
Overall Width (mm)990
Overall Height (mm)1820
Ground Clearance (mm)180
Wheelbase (mm)1800
Axle Configuration3x3

Transmission & Loading Capacity

TransmissionAutomatic
Kerb Weight (Kgs)310
Power SteeringNo
GVW / GCW (Kgs)500 kg
Gear Box1 Forward + 1 Reverse
Payload (Kgs)500 Kgs

Features

SteeringHandle bar type
A/CNo
Cruise ControlNo
Navigation SystemNo
TelematicsNo
Tiltable SteeringNo
Arm-restNo
Seat TypeStandard

Brakes & Suspension

BrakesDrum Brake
Front SuspensionTelescopic Shockers
Rear SuspensionLeaf Spring
Parking BrakesYes
ABSNo

Body Option & Cabin Type

Chassis TypeHeavy Duty CRCA
Body OptionBox body
Cabin TypeDay Cabin
Tiltable CabinNo

Tyres

Number of Tyre3
Rear Tyre90/90- 12
Front Tyre90/90- 12

Others

ChassisYes
Battery(Volts)48 V
Fog LightsNo
Alternator (Amps)55

*Prices are ex-showroom in New Delhi. Specifications may vary for different variants.
