Specifications

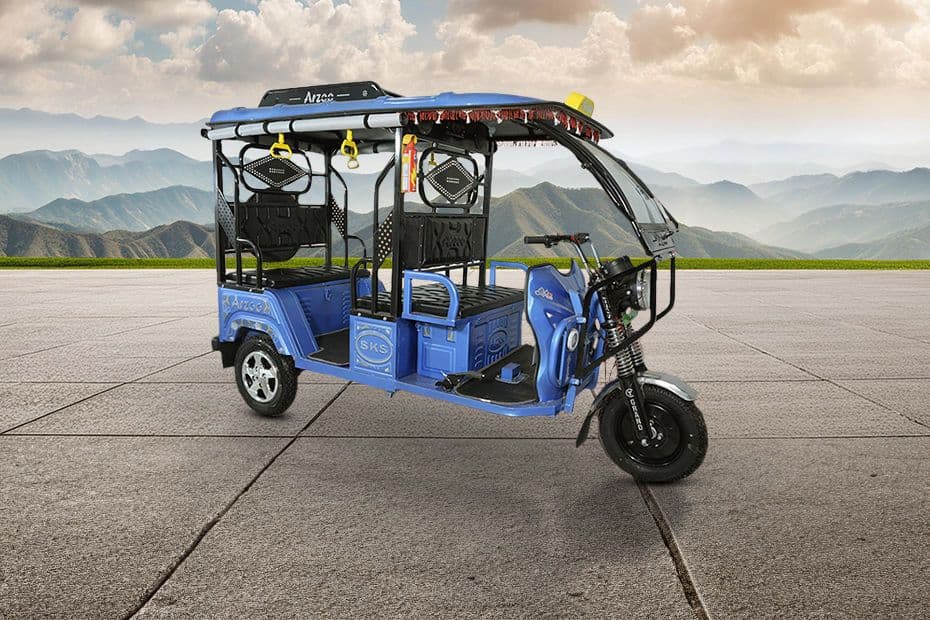

Arzoo Eco 22

Explore Arzoo Eco 22 specifications & features across all variants — engine, dimensions, safety and more.

Price on Request

Ex-showroom Price

Eco 22

Specifications & Features.

Key Specifications

Fuel TypeElectric
Engine-
TransmissionAutomatic
Power2 hp

Performance

Max Power2 hp
Fuel TypeElectric
Max Speed (km/h)40
Range110
Battery Capacity140 Ah
Product TypeL3M (Low Speed Passenger Carrier)
Carrier TypePassenger Carrier
Type of MotorBLDC Motor

Charging

Charging Time6-8 hrs

Dimension

Overall Length (mm)2400
Overall Width (mm)1000
Overall Height (mm)1700
Ground Clearance (mm)180
Axle Configuration3x3

Transmission & Loading Capacity

TransmissionAutomatic
Power SteeringNo
GVW / GCW (Kgs)600 kg
Gear Box1 Forward + 1 Reverse

Features

SteeringHandle bar type
A/CNo
Cruise ControlNo
Navigation SystemNo
TelematicsNo
Tiltable SteeringNo
Arm-restNo
Seat TypeStandard

Brakes & Suspension

BrakesDrum Brakes
Front SuspensionTelescopic Shockers
Rear SuspensionLeaf Spring
Parking BrakesYes
ABSNo

Body Option & Cabin Type

Chassis TypeChassis with Cabin
Body OptionFully Built
Cabin TypeDay Cabin
Tiltable CabinNo

Tyres

Number of Tyre3
Rear Tyre3.75-12
Front Tyre3.75-12

Others

ChassisYes
Battery(Volts)48 V
Fog LightsNo
Alternator (Amps)55

*Prices are ex-showroom in New Delhi. Specifications may vary for different variants.
