Specifications

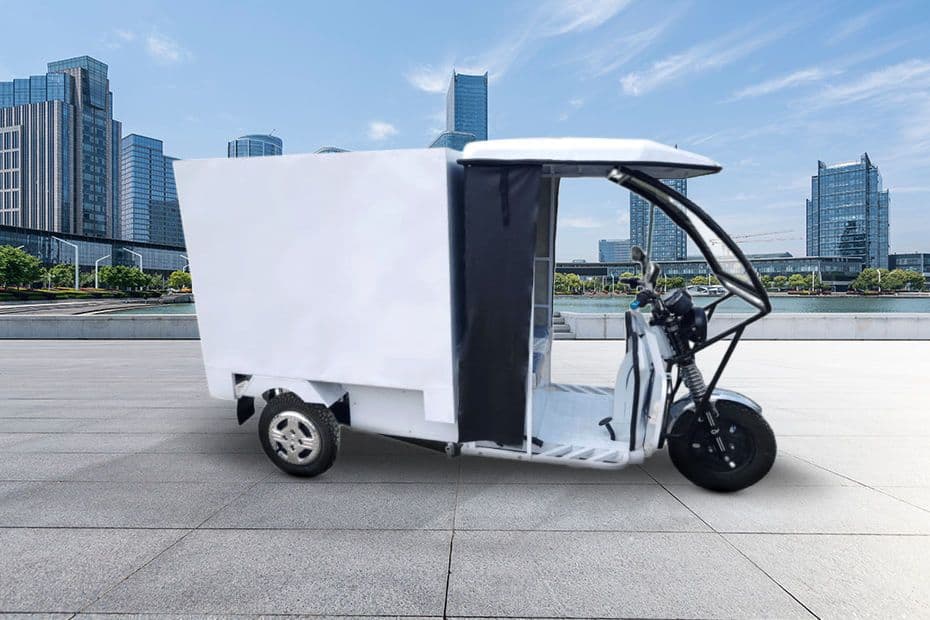

ADM E-Cargo Full

Explore ADM E-Cargo Full specifications & features across all variants — engine, dimensions, safety and more.

Price on Request

Ex-showroom Price

E-Cargo Full

Specifications & Features.

Key Specifications

Fuel TypeElectric
Engine-
TransmissionAutomatic
Power1 hp

Performance

Max Power1 hp
Fuel TypeElectric
Gradeability (%)10 %
Max Speed (km/h)25
Turning Radius (mm)2800
Range70
Battery Capacity130 Ah
Product TypeL3N (Low Speed Goods Carrier)

Charging

Charging Time8 Hours

Dimension

Overall Length (mm)2780
Overall Width (mm)980
Overall Height (mm)1770
Ground Clearance (mm)200
Wheelbase (mm)2160
Axle Configuration3x3

Transmission & Loading Capacity

TransmissionAutomatic
Kerb Weight (Kgs)550
Power SteeringNo
GVW / GCW (Kgs)750 kg
Gear Box1 Forward + 1 Reverse
Payload (Kgs)310 Kgs

Features

SteeringHandle bar type
A/CNo
Cruise ControlNo
Navigation SystemNo
TelematicsNo
Tiltable SteeringNo
Arm-restNo
Seat TypeStandard

Brakes & Suspension

BrakesLever & Paddle Operated Drum Type
Front Suspension43 mm Telescopic Hydraulic
Rear SuspensionLeaf Spring Shocker
Parking BrakesMechanical Hand Lever Operated
ABSNo

Body Option & Cabin Type

Chassis TypeChassis with Cabin
Body OptionBox body
Cabin TypeDay Cabin
Tiltable CabinNo

Tyres

Number of Tyre3
Rear Tyre3.75-12
Front Tyre3.75-12

Others

ChassisYes
Battery(Volts)48 V
Fog LightsNo

*Prices are ex-showroom in New Delhi. Specifications may vary for different variants.
