Specifications

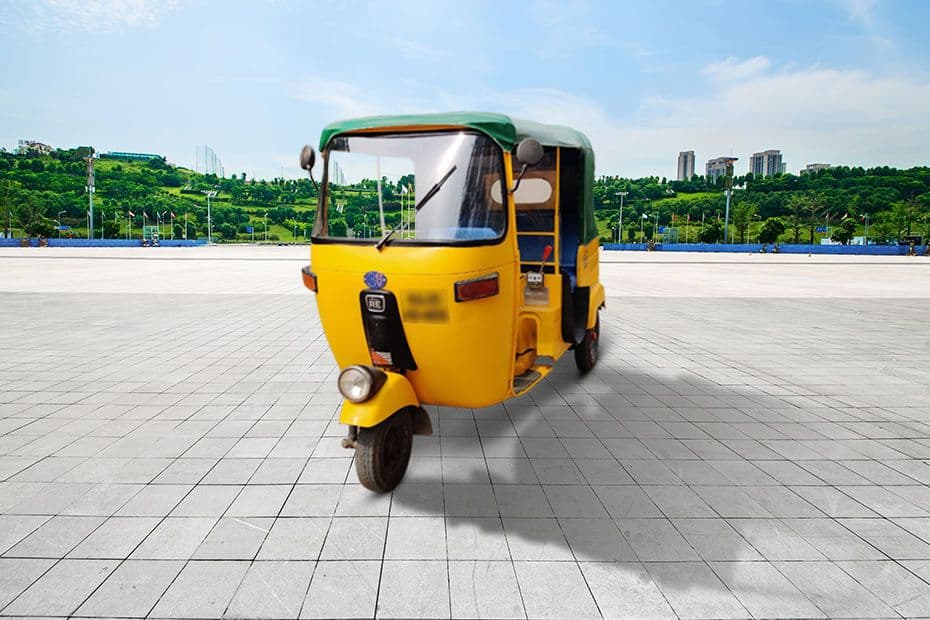

3evi e30 CONVERSION

Explore 3evi e30 CONVERSION specifications & features across all variants — engine, dimensions, safety and more.

Price on Request

Ex-showroom Price

e30 CONVERSION

Specifications & Features.

Key Specifications

Fuel TypeElectric
Engine-
TransmissionGear Differential
Power12 hp

Performance

Max Power12 hp
Fuel TypeElectric
Gradeability (%)20 %
Range130
Battery Capacity200 Ah
Product TypeL5M (High Speed Passenger Carrier)
Carrier TypePassenger Carrier
Emission NormsZero Tailpipe

Charging

Charging Time6-7 hours

Dimension

Overall Length (mm)2635
Overall Width (mm)1300
Overall Height (mm)1720
Ground Clearance (mm)140
Wheelbase (mm)2050
Axle Configuration3x3

Transmission & Loading Capacity

TransmissionGear Differential
Kerb Weight (Kgs)380
Power SteeringNo
GVW / GCW (Kgs)720 kg
Gear Box1 Forward + 1 Reverse

Features

SteeringHandle bar type
A/CNo
Cruise ControlNo
Navigation SystemNo
TelematicsNo
Tiltable SteeringNo
Arm-restNo
Seat TypeStandard

Brakes & Suspension

BrakesDrum Brakes
Front SuspensionMac Pherson Strut
Rear SuspensionLeaf Spring Suspension
Parking BrakesYes
ABSNo

Body Option & Cabin Type

Vehicle TypeAuto Rickshaw
Chassis TypeChassis with Cabin
Body OptionFully Built
Cabin TypeDay Cabin
Tiltable CabinNo

Tyres

Number of Tyre3
Rear Tyre4.50-12
Front Tyre4.00-8

Others

ChassisYes
Battery(Volts)48V
Fog LightsNo

*Prices are ex-showroom in New Delhi. Specifications may vary for different variants.
