Compare

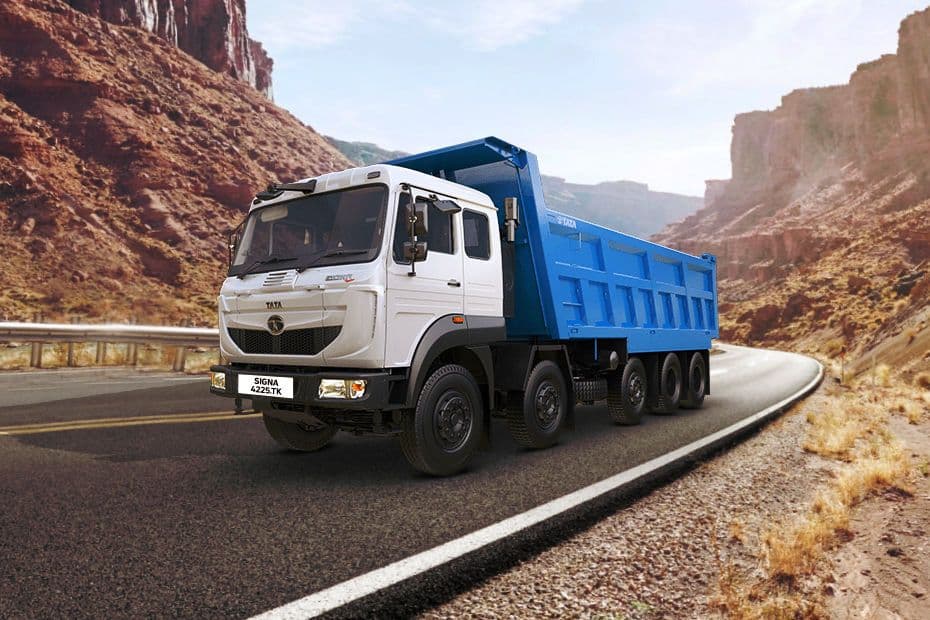

Ashok Leyland AVTR 4220-10x4 TippervsTata Signa 4225.TK

6600/24m3/Box

₹33.26 - ₹41.37 Lakh

Ex-showroom price

CAB/6700

₹56.62 Lakh

Ex-showroom price

Features & Specs

Features that matter every day.

Instead of counting features, we compare which ones each vehicle actually includes.

Hide Common Features

Body Option & Cabin Type
Chassis Type Chassis with Cabin Chassis with Cabin
Body Option Box body Box body
Cabin Type Day and Slepper Cabin Day and Sleeper Cabin
Tiltable Cabin No Hydraulically tiltable
Tyres
Number of Tyre 14 14
Rear Tyre 295/90R20 295/90 R20 (in 10x2 configuration), 11R20 (in 10x4 configuration)
Front Tyre 295/90R20 295/90 R20 in 10x2 configuration, 11R20 in 10x4 configuration
Others
Chassis Yes Yes
Battery(Volts) 24 V 12 V
Fog Lights No No

Fuel Tank (Litres)	375 Ltr	300 Ltr
Engine	H series BS VI with i-Gen6 technology 200 H	Cummins ISBe 6.7L
Fuel Type	Diesel	Diesel
Emission Norms	BS-VI	BS VI
Max Torque	700 Nm	950 Nm
Mileage	2.25-3.25 kmpl	2.25-3.25 kmpl
Max Speed (km/h)	60	80
Engine Cylinders	6	6
Turning Radius (mm)	11885
Battery Capacity	120 Ah
Product Type	L5N (High Speed Goods Carrier)	L5N (High Speed Goods Carrier)
Carrier Type	Goods Carrier	Goods Carrier
Max Power	200 hp	250 hp
Engine Displacement (cc)	5660 cc	6692 cc
Mileage City	0.5-1.5
Mileage Highway	1-2
Gradeability (%)	21.82 %

Transmission	Manual	Manual
Payload (Kgs)	27000 Kgs	32000 Kgs
GVW / GCW (Kgs)	42000 kg	42000 kg
Kerb Weight (Kgs)		10000
Gear Box	9 Speed synchromesh ??" FGR 12.73:1	G1150 9 speed Gearbox with crawler & one reverse
Power Steering	Yes	Yes
Clutch	380 mm dia ??" single plate, dry type with clutch booster	430 mm dia single plate dry friction organic lining

Steering	Hydraulic assisted power steering	Power Steering
A/C	Optional	Yes
Cruise Control	No	No
Navigation System	No	No
Telematics	No	Yes
Tiltable Steering	No	Tilt and telescopic
Arm-rest	No	No
Seat Type	Standard	Standard
Driver Information Display	Yes	Yes
Adjustable Driver Seat	Yes	6 way adjustable
Seating Capacity	D+1	D+1
Tubeless Tyres	No	No
Seat Belts	Yes	Yes
Hill Hold	No	Yes

Brakes	Full air Dual line brakes with ABS with ASA	New iCGT Brakes
Front Suspension	Semi-elliptic multi leaf, Parabolic	Parabolic Leaf Spring Semi Elliptical leaf Spring
Rear Suspension	Non-reactive suspension (NRS) Semi-elliptic	Semi Elliptical Leaf Spring Bogie Suspension
ABS	Yes	Yes
Parking Brakes	Rear wheels only	No
Front Axle	Forged I section ??" Reverse Elliot type	Forged I Beam Reverse Elliot Type Drop Beam
Rear Axle	Fully floating single speed rear axle RAR: 6.17:1	Single Reduction,Extra Heavy Duty,Hypoid Gears,Fully Floating Axle Shafts

Number of Tyre	14	14
Rear Tyre	295/90R20	295/90 R20 (in 10x2 configuration), 11R20 (in 10x4 configuration)
Front Tyre	295/90R20	295/90 R20 in 10x2 configuration, 11R20 in 10x4 configuration
