Specifications

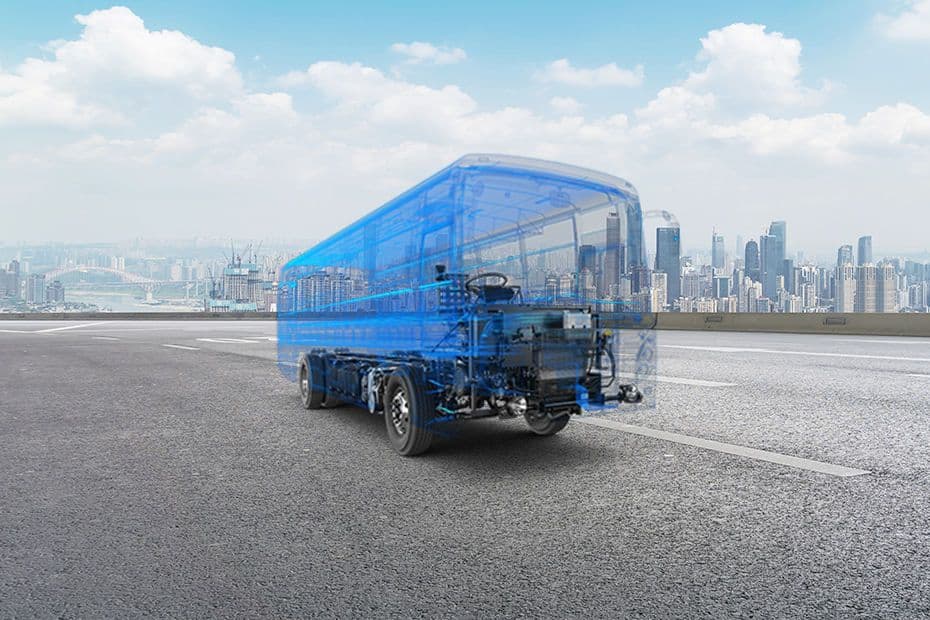

Eicher 6016 R LPO Chassis

Explore Eicher 6016 R LPO Chassis specifications & features across all variants — engine, dimensions, safety and more.

Price on Request

Ex-showroom Price

6016 R LPO Chassis

Specifications & Features.

Key Specifications

Fuel TypeDiesel
EngineFront
TransmissionManual
PowerYes

Others

LightsYes
Battery(Volts)24 V
Alternator (Amps)90A
First Aid KitYes
Battery Capacity150 Ah

Safety

Rear BrakesAir Brakes
Front SuspensionWeveller Suspension
Rear SuspensionAir Suspension
Parking BrakesYes
Power SteeringYes
Seat BeltsYes
Front BrakesAir Brakes

Design & Build

Chassis TypeDomex 650 straight frame
Overall Width (mm)2540
Ground Clearance (mm)240
Front Overhang (mm)2205
Front Tyre295/80R22.5-16PR
Rear Tyre295/80R22.5-16PR
Wheelbase (mm)6200 mm
Overall Length (mm)11765

Performance

TransmissionManual
Gear Box6-Speed
Max Power210 hp
Max Torque825 Nm
Emission NormsBS-VI
Engine Displacement (cc)5132 cc
EngineVEDX5
ClutchSynchromesh 395 mm

Comfort

Driver Information DisplayYes
Adjustable Driver SeatYes
SteeringPower Steering
Cruise ControlYes

*Prices are ex-showroom in New Delhi. Specifications may vary for different variants.
