Specifications

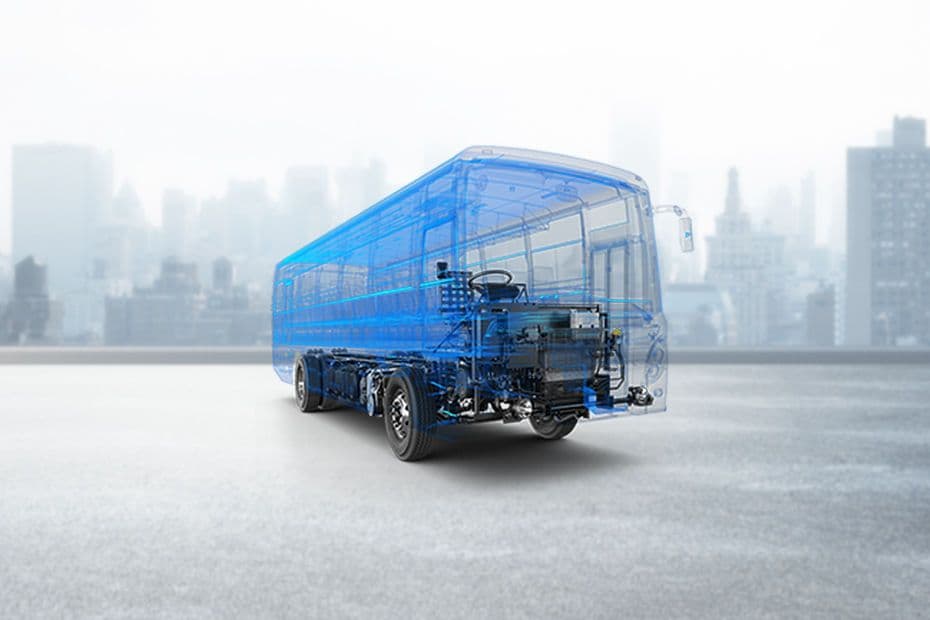

Eicher 6016 M LP Chassis

Explore Eicher 6016 M LP Chassis specifications & features across all variants — engine, dimensions, safety and more.

Price on Request

Ex-showroom Price

6016 M LP Chassis

Specifications & Features.

Key Specifications

Fuel TypeDiesel
EngineFront
TransmissionManual
PowerYes

Others

LightsYes
Battery(Volts)2x12V, 150Ah
Alternator (Amps)90A
First Aid KitYes
HatrackYes

Safety

Rear BrakesAir Brakes
Front SuspensionWeveller
Rear SuspensionWeveller
Parking BrakesYes
Power SteeringYes
Seat BeltsYes
Front BrakesAir Brakes

Design & Build

Chassis TypeDomex 650 straight frame
Overall Width (mm)2540
Ground Clearance (mm)245
Front Overhang (mm)1362
Front Tyre10R20-16PR
Rear Tyre10R20-16PR
Wheelbase (mm)5340 mm
Overall Length (mm)9902

Performance

TransmissionManual
Gear Box6-Speed
Max Power210 hp
Max Torque825 Nm
Emission NormsBS-VI
Engine Displacement (cc)5132 cc
EngineVEDX5
ClutchSynchromesh 395 mm

Comfort

Driver Information DisplayYes
Adjustable Driver SeatYes
SteeringPower Steering
A/CNo
Cruise ControlYes

*Prices are ex-showroom in New Delhi. Specifications may vary for different variants.
